Parts library
PR-FA-200-0004

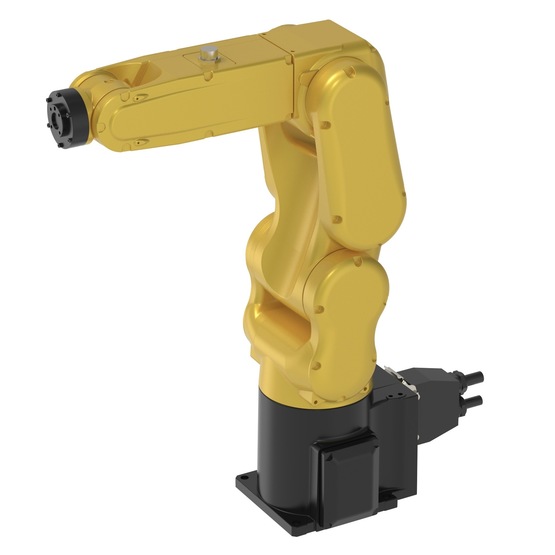

FANUC LR Mate 200iD/4S Industrial Robot Arm
The LR Mate 200iD/4S is an extremely compact and easy to integrate 6-axis Fanuc robot arm. It has been designed to handle small payloads of 4kg or less at very high speeds. It's an excellent fit for application that require high throughput rates, such as robotic machine tending and robotic pick and place.
No technical documents available for this part.Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | PR-FA-200-0004 |
| Unit Price | Contact Us |
| Weight | 60 kg |
| Dimensions (L x W x H) | 400 x 190 x 635 mm |
| Material | Various (Steel, Aluminum, Plastic) |
| Surface Finish | N/A |
| Spec Attribute | Spec Value |
|---|---|
| Performance | |
| Reach | 550 mm |
| Repeatability | ±0.01 mm |
| Max Payload | 4 kg |
| Robot Weight | 20 kg |
| Degrees of Freedom | 6 |
| Typical Average Power Consumption | 500 W |
| Spec Attribute | Spec Value |
|---|---|
| Movement | |
| J1 Movement Range | 360 degrees |
| J2 Movement Range | 230 degrees |
| J3 Movement Range | 402 degrees |
| J4 Movement Range | 380 degrees |
| J5 Movement Range | 240 degrees |
| J6 Movement Range | 720 degrees |
| Spec Attribute | Spec Value |
|---|---|
| Features | |
| Robot IP Rating | 67 |
