PR-FA-200-0000

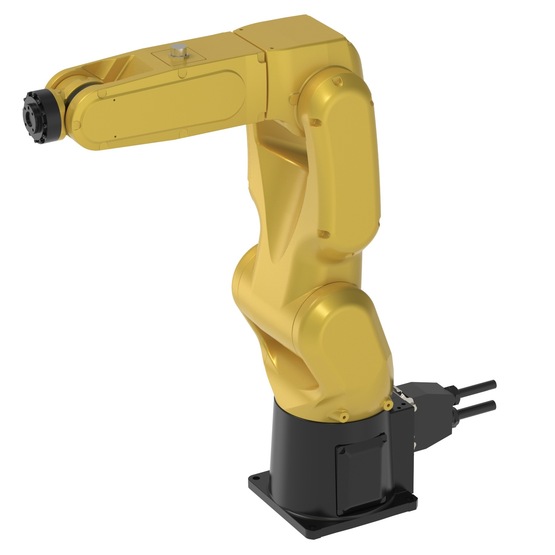

FANUC LR Mate 200iD Industrial Robot Arm
The FANUC LR Mate 200iD is a compact 6 axis robot with the approximate size and reach of a human arm. It combines best-in-class robot weight-load capacity with standard IP67 protection and outstanding FANUC quality. This makes the LR Mate 200iD the best and most reliable mini robot for process automation in many industries.
No technical documents available for this part.Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | PR-FA-200-0000 |
| Unit Price | Contact Us |
| Weight | 65 kg |
| Dimensions (L x W x H) | 470 x 235 x 700 mm |
| Material | Various (Steel, Aluminum, Plastic) |
| Surface Finish | N/A |
| Spec Attribute | Spec Value |
|---|---|
| Performance | |
| Reach | 717 mm |
| Repeatability | ±0.01 mm |
| Max Payload | 7 kg |
| Robot Weight | 25 kg |
| Degrees of Freedom | 6 |
| Typical Average Power Consumption | 1000 W |
| Spec Attribute | Spec Value |
|---|---|
| Movement | |
| J1 Movement Range | 340 degrees |
| J2 Movement Range | 245 degrees |
| J3 Movement Range | 420 degrees |
| J4 Movement Range | 380 degrees |
| J5 Movement Range | 250 degrees |
| J6 Movement Range | 720 degrees |
| Spec Attribute | Spec Value |
|---|---|
| Features | |
| Robot IP Rating | 67 |
