MO-CV-031-0008__2

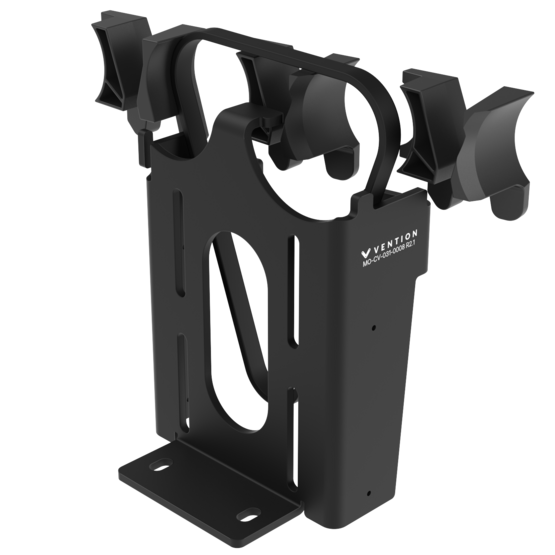

Skewed Motor Mount for Left-to-Right 405 mm Poly-V Conveyor
This bracket is used to connect the poly-v motor adaptor (MO-CV-039-0001) to the custom LR skewed poly-v roller conveyors. The motor adaptor can slide along the vertical slots on this mount, allowing for tensioning of the drive poly-v belt. It comes with a driver belt and belt guards
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 3D Model |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | MO-CV-031-0008__2 |
| Unit Price | $59.29 USD |
| Weight | 0.86572 kg |
| Dimensions (L x W x H) | 120 x 97.4 x 170.7 mm |
| Material | Steel |
| Surface Finish | Black Powder Coat |
| Associated Fasteners | 2 x HW-FN-003-0018, 1 x HW-FN-010-0010, 2 x HW-WS-001-1003, 8 x HW-WS-007-0002 |
| Parts | Quantity | ||
|---|---|---|---|
| Parts | Part Number | Qty | |
| Small Finger Guard For Right Side Of Roller In Skewed Poly-V Conveyor | MO-CV-031-0011 | 2 | View |
| Large Finger Guard For Left Side Of Roller In Skewed Poly-V Conveyor | MO-CV-031-0012 | 3 | View |
| Small Finger Guard for Driver Belt (Right Side of Roller) In Skewed Poly-V Conveyor) | MO-CV-031-0029__2 | 1 | View |
| 456 mm Poly-V Belt For HD Conveyor Driver Motor Shaft | MO-PL-005-0456 | 1 | View |
| M8 x 18mm Screw | HW-FN-003-0018 | 2 | View |
| M4-0.7 x 10mm Low-Profile Socket Head Screw | HW-FN-010-0010 | 1 | View |
| M8 Split Lock Washer, with 12.7mm OD | HW-WS-001-1003 | 2 | View |
| M4 Oversized Washer | HW-WS-007-0002 | 8 | View |
$59.29 USD
Looking for more details?
This part requires custom specifications. Contact our sales team for tailored pricing and detailed information to ensure it fits your project perfectly.
