PR-FA-200-0007

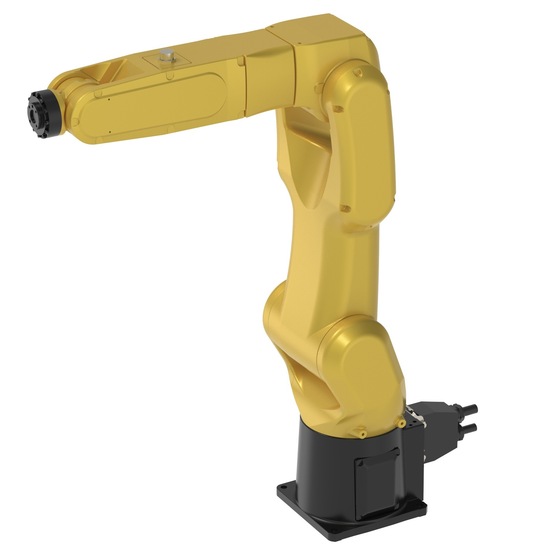

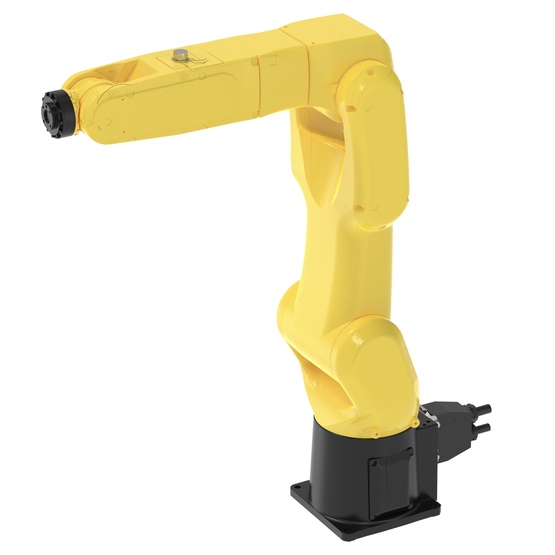

FANUC LR Mate 200iD/7L Industrial Robot Arm
The FANUC LR Mate 200iD/7L is a compact, 6-axis robot featuring an extended reach of 911 mm for a wider working envelope. It combines a 7 kg payload capacity with enhanced cable protection, high-speed performance, and standard IP67 durability. This makes the long-reach 200iD/7L the most reliable mini robot for extended-range machine tending, picking, and packaging applications.
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| LR Mate 200iD-7L datasheet |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | PR-FA-200-0007 |
| Unit Price | Contact Us |
| Material | Various (Steel, Aluminum, Plastic) |
| Surface Finish | N/A |
| Spec Attribute | Spec Value |
|---|---|
| Performance | |
| Reach | 911 mm |
| Repeatability | ±0.01 mm |
| Max Payload | 7 kg |
| Robot Weight | 27 kg |
| Degrees of Freedom | 6 |
| Typical Average Power Consumption | 500 W |
| Spec Attribute | Spec Value |
|---|---|
| Movement | |
| J1 Movement Range | 340 degrees |
| J2 Movement Range | 245 degrees |
| J3 Movement Range | 430 degrees |
| J4 Movement Range | 380 degrees |
| J5 Movement Range | 545 degrees |
| J6 Movement Range | 1000 degrees |
| Spec Attribute | Spec Value |
|---|---|
| Features | |
| Robot IP Rating | 67 |
Looking for more details?
This part requires custom specifications. Contact our sales team for tailored pricing and detailed information to ensure it fits your project perfectly.
