PR-FA-210-0010

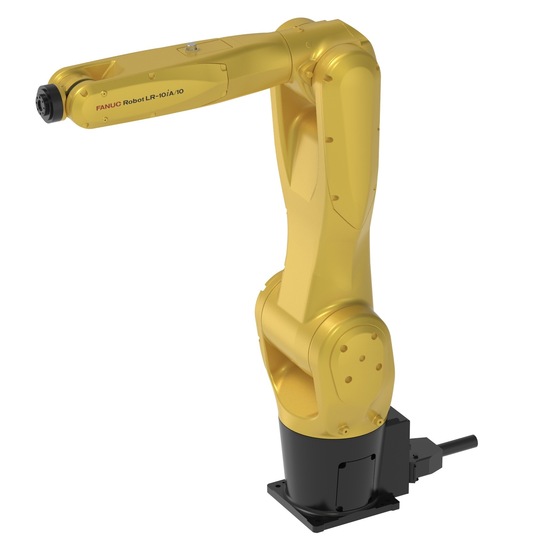

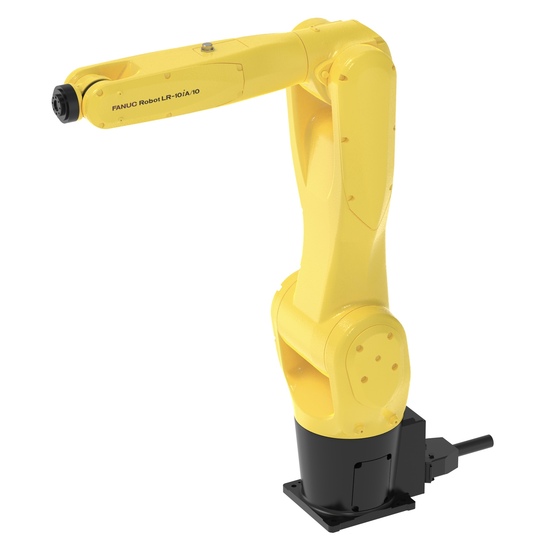

FANUC LR-10iA/10 Industrial Robot Arm
Built for machine tending and versatile picking tasks in warehousing and logistics, the FANUC LR-10iA/10 is a compact 6-axis robot that handles payloads up to 13 kg. Its slim arm design allows it to reach directly into machine tools, making it a strong fit for companies working with limited floor space.
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| LR 10iA datasheet |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | PR-FA-210-0010 |
| Unit Price | Contact Us |
| Spec Attribute | Spec Value |
|---|---|
| Performance | |
| Reach | 1101 mm |
| Repeatability | ±0.02 mm |
| Max Payload | 10 (up to 13) kg |
| Robot Weight | 46 kg |
| Degrees of Freedom | 6 |
| Typical Average Power Consumption | 500 W |
| Spec Attribute | Spec Value |
|---|---|
| Movement | |
| J1 Movement Range | 370 degrees |
| J2 Movement Range | 235 degrees |
| J3 Movement Range | 421 degrees |
| J4 Movement Range | 380 degrees |
| J5 Movement Range | 250 degrees |
| J6 Movement Range | 720 degrees |
| Spec Attribute | Spec Value |
|---|---|
| Features | |
| Robot IP Rating | 67 |
Looking for more details?
This part requires custom specifications. Contact our sales team for tailored pricing and detailed information to ensure it fits your project perfectly.
