Rapid Series Palletizer - Dual Infeed with Slip Sheet

Vention official

Deploy Vention's UR20 palletizer machine within days to your end of line packaging operations. Designed with safety area scanners and a compact base, it includes the hardware and software required to palletize side by side at high throughputs. Configure your machine and increase your production!

Spec Attribute	Spec Value
Technical Specifications
Design Number	PZ-EL-506624 v65.5
Weight	1232.03 kg
Dimensions (L x W x H)	6526 x 3324 x 2446 mm
Application	Packaging
Assembly Time	39:14

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M12 4 Pins Male Straight Field Wireable Input ConnectorCE-CN-030-0001 - 60 X 20 X 20 mmShips next day	4
	M12 4 Pins Female Straight Field Wireable Output ConnectorCE-CN-048-0002 - 60 X 20 X 20 mmShips next day	4
	Sensor and Reflector BracketCE-HW-001-0003__3 - 43 X 44 X 37 mmShips in 2 days	2
	Diffuse Keyence PR-G M18 NPN/PNP Sensor (Sn 500)CE-SN-007-0007 - 110 X 110 X 30 mmShips next day	16
	MachineApp - PalletizerCE-SW-002-0004 - 40 X 10 X 5 mmShips next day	1
	Remote Support HeadsetCE-TP-015-0000 - 17 X 8 X 18 mmShips next day	1
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	4
	Large Cobot Dress PackHW-CA-005-0003 - 360 X 360 X 180 mmObsolete	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	10
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	4
	Motor Adaptor for O-Ring ConveyorMO-CV-029-0001 - 92 X 85 X 85 mmShips next day	8
	C-Channel Segment for Roller Conveyor (1575mm Length)MO-CV-030-0003__2 - 1575 X 45 X 90 mmComing soon	4
	Inner Curve C-Channel for Roller Conveyor (45° Segment)MO-CV-030-0004__2 - 574 X 98 X 90 mmComing soon	4
	Outer Curve C-Channel for 585mm Width Roller Conveyor (45° Segment)MO-CV-030-0005__2 - 1055 X 90 X 146 mmComing soon	4
	Extrusion Mounting Bracket for Roller Conveyor (Angle Adjustable)MO-CV-030-0006__2 - 180 X 49 X 112 mmComing soon	14
	Floor Anchoring Bracket for Roller Conveyor (Height Adjustable)MO-CV-030-0007 - 145 X 48 X 228 mmShips next day	14
	Curved 1-Zone O-Ring Conveyor (45° Segment x 585mm W)MO-CV-030-0012__2 - 1055 X 675 X 199 mmComing soon	4
	Right-to-Left Skewed 2-Zone O-Ring Conveyor (1575mm L x 585mm W)MO-CV-030-0013 - 1575 X 675 X 199 mmShips next day	1
	Left-to-Right Skewed 2-Zone O-Ring Conveyor (1575mm L x 585mm W)MO-CV-030-0018 - 1575 X 675 X 199 mmShips next day	1
	Gap Cover for Right-to-Left Skewed O-Ring Conveyor (585mm Width)MO-CV-030-0020 - 585 X 67 X 86 mmShips next day	2
	Gap Cover for Left-to-Right Skewed O-Ring Conveyor (585mm Width)MO-CV-030-0021 - 585 X 67 X 86 mmShips next day	2
	Motor Shaft Cover for O-Ring ConveyorMO-CV-030-0022 - 145 X 125 X 112 mmShips in 18 days	8
	Flange Adapter for UR20 / UR30 (ISO80 to ISO50)MO-GR-015-0080 - 22 X 100 X 100 mmShips next day	1
	Vention Modular Vacuum Gripper, Medium (75mm Cups)MO-GR-100-1075 - 295 X 295 X 93 mmShips next day	1
	Telescopic Lift Column for MMv2MO-LM-050-0830__2 - 315 X 315 X 830 mm	1
	MachineMotion AI Nema 34 Conveyor Motor - 157mmMO-SM-030-0004 - 360 X 86 X 103 mmShips in 3 days	8
	Robot Wrist Extensions EX-50-100 mmPR-MB-001-0222 - 63 X 100 X 63 mmShips in 12 days	1
	Universal Robots UR20 Collaborative Robot ArmPR-UR-001-0575 - 1000 X 1000 X 500 mmShips next day	1
	RSP 3 Area Scanner Safety Add-onRS-PL-030-0001 - 500 X 200 X 200 mmComing soon	1
	RSP 3 UR20 Telescopic ColumnRS-PL-031-0011 - 1735 X 900 X 890 mmComing soon	1
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	2
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips next day	14
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips next day	4
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	7
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	4
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips next day	4
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips next day	4
	45x45mm (1080mm) Aluminum ExtrusionST-EXT-001-1080 - 1080 X 45 X 45 mmShips next day	2
	45x45mm (1170mm) Aluminum ExtrusionST-EXT-001-1170 - 1170 X 45 X 45 mmShips next day	4
	45x45mm (1260mm) Aluminum ExtrusionST-EXT-001-1260 - 1260 X 45 X 45 mmShips next day	4
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	1
	45x90mm (675mm) Aluminum ExtrusionST-EXT-002-0675 - 675 X 45 X 90 mmShips next day	4
	45x90mm (1080mm) Aluminum ExtrusionST-EXT-002-1080 - 1080 X 45 X 90 mmShips next day	4
	45x90mm (1890mm) Aluminum ExtrusionST-EXT-002-1890 - 1890 X 45 X 90 mmShips next day	4
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	8
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	8
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	14
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	44
	45 Degree Inline Connector with LocatorsST-HP-003-0003__2 - 45 X 45 X 5 mmShips next day	16
	45mm x 90mm Aluminum Gusset with LocatorsST-HP-003-0005 - 89 X 42 X 44 mmShips next day	8

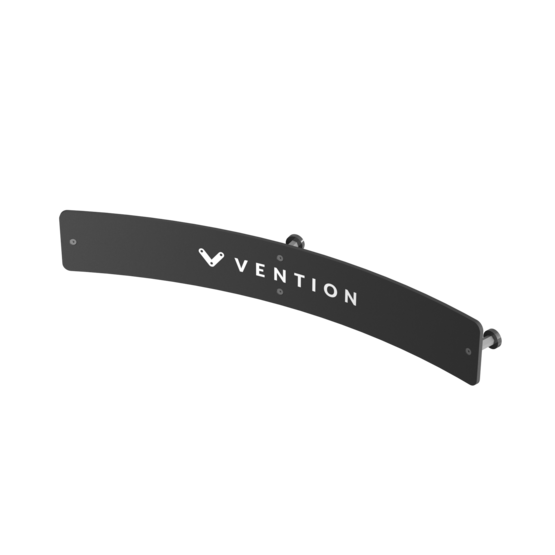

	Inner Curve Frame Cover for Roller ConveyorST-PN-031-0554__2 - 550 X 5 X 81 mmComing soon	8

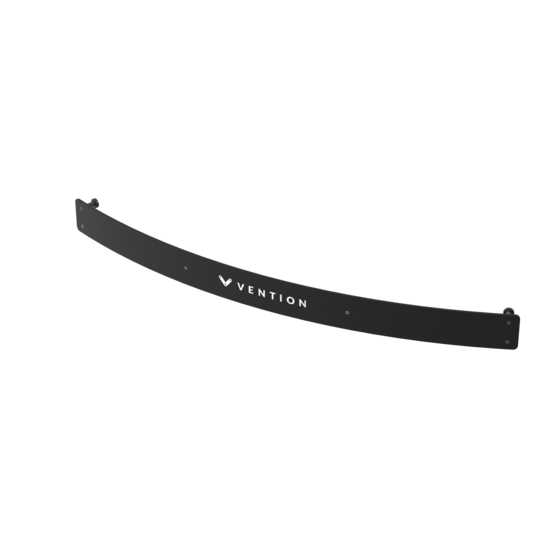

	Outer Curve Frame Cover for 585mm Width Roller ConveyorST-PN-031-1084__2 - 1080 X 5 X 81 mmComing soon	8
	Frame Cover for Roller Conveyor (1575mm Length)ST-PN-031-1575__2 - 1571 X 5 X 81 mmComing soon	8
	Telescopic Column RiserST-RB-036-0001 - 405 X 405 X 305 mmShips next day	1
	Multi-Robot Mounting Plate 270 x 270 mmST-RB-100-0270__3 - 268 X 268 X 27 mmShips next day	1
	Floor Anchoring Mount for 45x45mm and 45x90mm ExtrusionsST-SE-001-0003 - 180 X 180 X 94 mmShips next day	8
	Door HingeST-SE-005-0001 - 67 X 67 X 19 mmShips next day	4
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 1.3041 m²Ships in 4 days	1
	Poly-Eco HDPE Panel, Black 3/8'' [9.5mm]ST-PN-011-0001 - 1.3041 m²Ships in 4 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	540
	M8 Drop-in T-nut with M5 set screwHW-FN-002-0008 - 21 X 13 X 8 mmShips next day	45
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	79
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	161
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	616
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	32
	M8 1.25 x 20mm Flat Head ScrewHW-FN-015-0020 - 20 X 16 X 16 mmShips next day	17
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	7
	M8 X1.25 Serrated Flange LocknutHW-FN-031-0002 - 17 X 17 X 8 mmShips next day	297
	M8 X1.25 Zinc Plated Thin Hex NutHW-FN-033-0002 - 13 X 13 X 4 mmShips next day	9
	6mm x 10mm Dowel PinHW-FN-036-0010 - 6 X 6 X 10 mmShips next day	2
	8mm x 14mm Undersized Dowel PinHW-FN-038-0014 - 14 X 8 X 8 mmComing soon	2
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	38
	M8 Split Lock Washer, with 12.7mm ODHW-WS-001-1003 - 12 X 12 X 2 mmShips next day	297
