MO-CV-031-0036

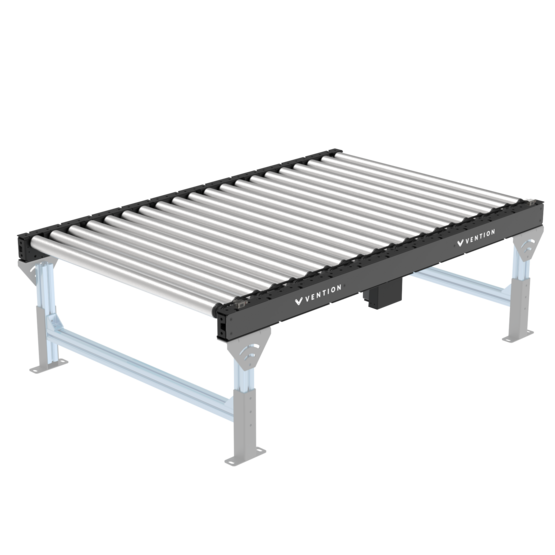

Straight 1-Zone Poly-V Conveyor (1575mm L x 945mm W)
Vention’s heavy duty poly-v conveyor facilitate the movement of heavy items. Using poly-V belts, these rollers can drive three times more force than an O-Ring belt. Combine these conveyors with Vention’s MachineMotion, motors and sensors to fully automate your conveyor. For capacity and driving force, please consult the technical documentation.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Poly-V Roller Conveyor |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | MO-CV-031-0036 |
| Unit Price | $1,720.18 USD |
| Weight | 64.086 kg |
| Dimensions (L x W x H) | 1575 x 1035 x 195.5 mm |
| Material | Steel, Aluminum |
| Associated Fasteners | 8 x HW-FN-002-0001, 8 x HW-FN-003-0018, 8 x HW-FN-031-0002, 8 x HW-WS-001-1003 |
| Spec Attribute | Spec Value |
|---|---|
| Technical Specifications | |
| Max Linear Speed | 2000 mm/s |
| Max Acceleration | 2000 mm/s2 |
| Displacement Ratio | 102.8 mm/turn |
| Roller Conveyor Capacity | 500kg for transport. Pressure accumulation is limited to 30 kg per zone |
