PR-KP-010-0001

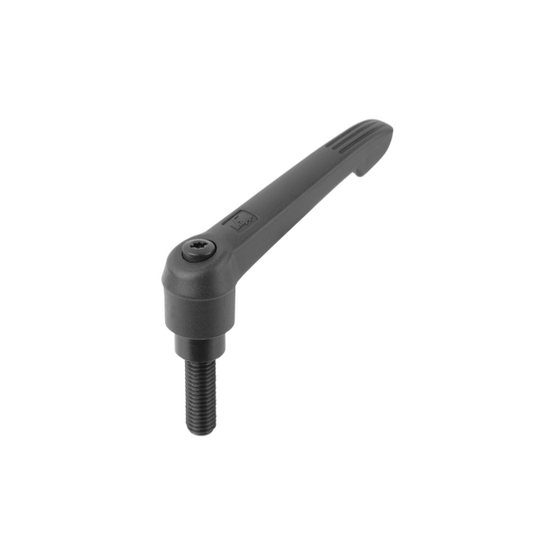

M8 Ratchet Handle 25mm
M8 bolt with ratchet handle, the handle is powder coated and the bolt has a black oxide finish. 25mm long to be used with Aluminum Profile Slider MO-LM-008-0002, -0003. Includes 1x M8 Washer with 16mm OD HW-WS-001-0001
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| K0269-Datasheet-1046-Adjustable-handles-plastic-with-external-thread-and-zinc-toothed-ring-threaded-insert-black-oxidized-steel-enUS |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | PR-KP-010-0001 |
| Unit Price | $9.80 USD |
| Weight | 0.0392 kg |
| Dimensions (L x W x H) | 75 x 19 x 70.5 mm |
| Material | Plastic & steel |
| Surface Finish | Black Gray |
| Associated Fasteners | 1 x HW-WS-001-0001 |
| Parts | Quantity | ||
|---|---|---|---|
| Parts | Part Number | Qty | |
| M8 Washer with 16mm Outside Diameter | HW-WS-001-0001 | 1 | View |
