MO-CV-030-0029

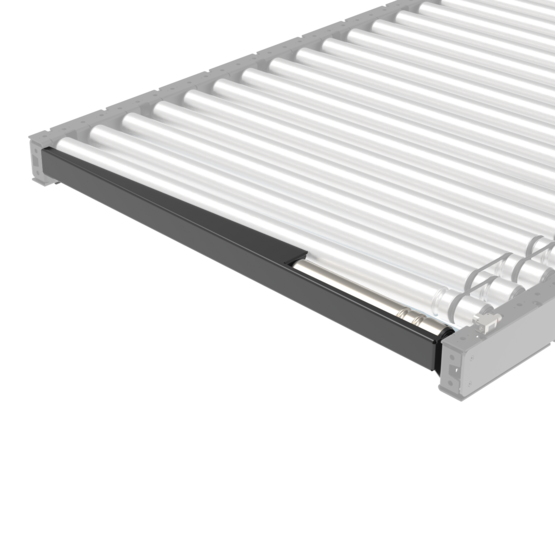

Gap Cover for Right-to-Left Skewed O-Ring Conveyor (945mm Width)
This bracket is designed for installation at both ends of the 945mm width right-to-left skewed roller conveyors (MO-CV-030-0047 and MO-CV-030-0048) to cover end gaps and ensure a smooth transition when the conveyors are butt-jointed. It includes a small roller (MO-CV-001-0315) and an extra o-ring (MO-PL-002-0239). The small roller is installed inside the bracket, with the extra o-ring connecting it to the adjacent roller.
| Technical Drawing | |
|---|---|
| Technical Drawing | |
| 2D Model | |
| 3D Model |
| Technical Documentation | |
|---|---|
| Technical Documentation | |
| Smart O-Ring Conveyor |
Can't find what you're looking for? Contact Us
| Spec Attribute | Spec Value |
|---|---|
| General Specifications | |
| Part Number | MO-CV-030-0029 |
| Unit Price | $53.24 USD |
| Weight | 1.962 kg |
| Dimensions (L x W x H) | 945 x 67.2 x 52.5 mm |
| Material | Steel |
| Surface Finish | Black Powder Coat |
| Associated Fasteners | 2 x HW-FN-003-0018, 2 x HW-FN-031-0002, 2 x HW-WS-001-1003 |
| Parts | Quantity | ||
|---|---|---|---|
| Parts | Part Number | Qty | |
| Double-Grooved Roller For Roller Conveyors, 315mm | MO-CV-001-0315 | 1 | View |
| 239mm Roller-to-Roller O-Ring for Straight Conveyor Segments | MO-PL-002-0239 | 1 | View |
| M8 x 18mm Screw | HW-FN-003-0018 | 2 | View |
| M8 X1.25 Serrated Flange Locknut | HW-FN-031-0002 | 2 | View |
| M8 Split Lock Washer, with 12.7mm OD | HW-WS-001-1003 | 2 | View |
