End Plate for Poly-V and O-Ring Conveyor (945mm)
MO-CV-031-0041

End Plate for Poly-V and O-Ring Conveyor (945mm)

Vention

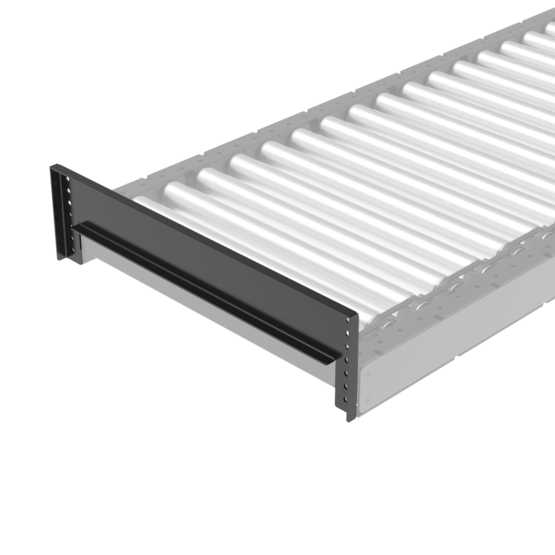

This end plate is designed for installation at the end of an O-Ring or Poly-V conveyor segment. It is height adjustable and uses a nut and bolt connection for mounting.

Technical Drawing
Technical Drawing
2D Model
3D Model
Technical Documentation
Technical Documentation
Smart O-Ring Conveyor
Poly-V Roller Conveyor

Can't find what you're looking for? Contact Us

Spec AttributeSpec Value
General Specifications
Part NumberMO-CV-031-0041
Unit Price$93.00 USD
Weight3.48 kg
Dimensions (L x W x H)1033 x 21.5 x 178 mm
MaterialSteel
Surface FinishBlack Powder Coat
Associated Fasteners4 x HW-FN-003-0018, 4 x HW-FN-031-0002

PartsQuantity
PartsPart NumberQty
M8 x 18mm ScrewHW-FN-003-00184View
M8 X1.25 Serrated Flange LocknutHW-FN-031-00024View

$93 USD

Sold by VentionShips from Vention
